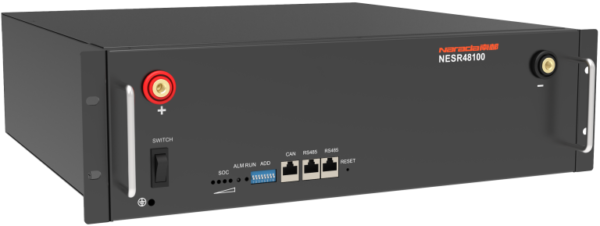

Narada NESR48100 Lithiumion Battery

Specifications Parameters NESR48100 Nominal Voltage(v) 48 Nominal Capacity(Ah) 100 Nominal Energy(Kwh) 4.8 Discharge Current (A) (Max.) 100 Charge Voltage(V) 54±0.5 Charge Current (A)(Recomm.) 20 Charge Current (A)(Max.) 100 Typical Weight(kg) 40 Dimensions(W/D/H)(mm) 442.5X440X133.5 Status Indicators SOC/RUN/ALM Communication Ports CAN/RS485 Communication In Parallel 16 Switch Available Operating Temperature – Discharge Max: -20 ~ 60°C,Recommend: 10~35°C – Charge Max: 0 ~ 60°C,Recommend: 10~35°C 0~40°C Storage Temperature 0~40°C Humidity 5%~95% IP Level IP20 Scalability Up to 76.8KWh (16 groups)
