500v 50kw pcs 100kwh lifepo4 lithium ion battery energy storage system

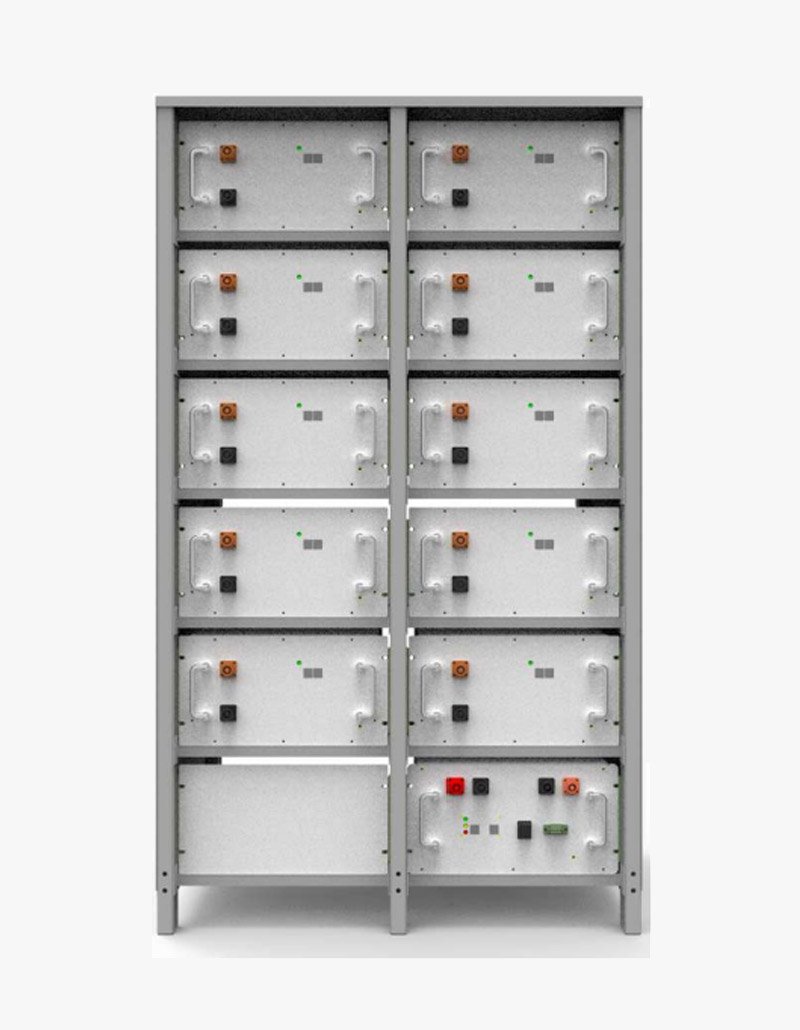

Basic DescriptionsThe battery system built in for High voltage solar energy storage system. This 768v DC battery system can also be used as UPS lithium battery storage. Built in BMS/BMS and able to communication with inverters.Features:HighlightsDramatic cost savings.Longer life span up to 3000-4500 timesLonger warranties up to 5 yearsSafety operations, no explode, no pollutionEfficient and fast charging and discharging For the lithium iron phosphate battery cells, the single cell voltage is always 3.2V, all voltage, current, power (kW) and energy (kwh) applications are based on this voltage. High voltage lithium battery system usually refers to the battery system voltage is greater than or equal to 96V, for example, 192V 50Ah battery system is 1P60S (60 cells series connected) cell connection and based on 50Ah single cell capacity. And 240V 50Ah battery is 1P75S cell connection, 384V 100Ah battery is 1P120S cell connection based on 100Ah cell, etc. We also can parallel cell first for double or triple total capacity. The corresponding battery capacity is usually 50Ah, 100Ah, 150Ah, 200Ah, etc. For high voltage, in the single-cluster battery rack, the battery modules are always connected in series to achieve a higher voltage. Moreover, there is a high voltage DC main unit is needed to manage this rack. The main function of the high voltage DC main unit is to manage all the BMU units of this cluster through the master BMS, meanwhile to provide startstop, protection and other functions for this rack. Please reference left picture for a HV lithium battery system. Reliable LiFePo4 battery provides 20kwh standby power. The system consists of 8 modules of 48v 50Ah batteries to form a 384v 50Ah system in series.Support scale in Parallel. CAN and RS485 communication interface. CMX high voltage battery system support parallel connection for scalability to achieve higher capacity.LCD display screen.The LCD screen allows you to monitoring the battery performance in real time. The real-time monitoring to take control of battery and avoid battery failure.Collecting battery data to bring you maintenance convenience and confidence whenever you need.ApplicationsThis battery suitable for Telecommunication room, internet data center (IDC). UPS and other areas as an ideal backup power supply. Detail Specifications:ItemTechnical ParametersThe Machine ParametersBattery TypeLithium Iron Phosphate Battery (LiFePO4)Nominal Voltage768VNominal Capacity105AhRated Reserved Energy80KWhSize ( The width is suitable for 19-inch Cabinets and the height is 47U)600(W)*800(L)*2260(H)mmWeight700kgMaximum Charging Current100AMaximum Discharging Current100ACharge Cut-off Voltage600~650VDischarge Cut-off Voltage850~876VNumber of Battery Module Per Cabinet10pcsNumber of Battery Cells Per Module24pcsOperation Temperature Range (Charge)0°C~ 45°COperation Temperature Range (Discharge)-10°C~ 60°CProtection FunctionOver-current/ Over-voltage/ Under-voltage/ Short Circuit/ Temperature ProtectionProtection GradeIP20Communication InterfaceRS485, CAN76.8V 105Ah Battery Module ParametersConfiguration24S1PNominal Capacity105AhRated Voltage76.8VInternal Resistance≤ 40mΩMaximum Charging Current100AMaximum Discharging Current100ACharge Cut-off Voltage87.6VDischarge Cut-off Voltage60VOperation Temperature Range (Charge)0°C~ 45°COperation Temperature Range (Discharge)-10°C~ 60°CStorage Temperature0°C~ 40°CStorage Humidity≤ 90�MS Main Technical ParametersCommunication Interface with PCSRS485/CANCommunication Interface with BMUCANMaximum Quantity of BMUs13Power24VDC (18V~28V)Net Weight2400kg
