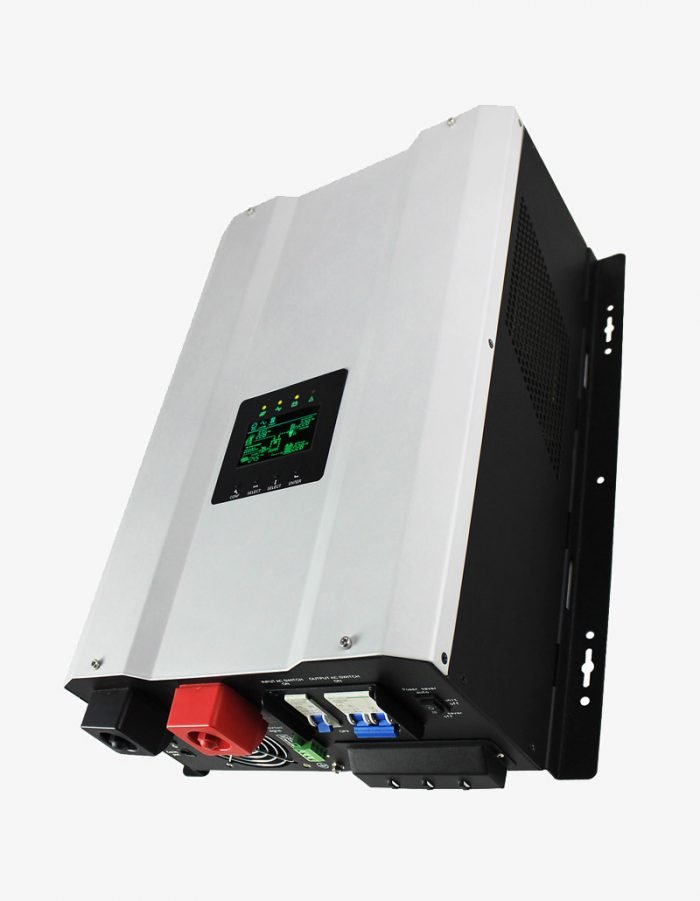

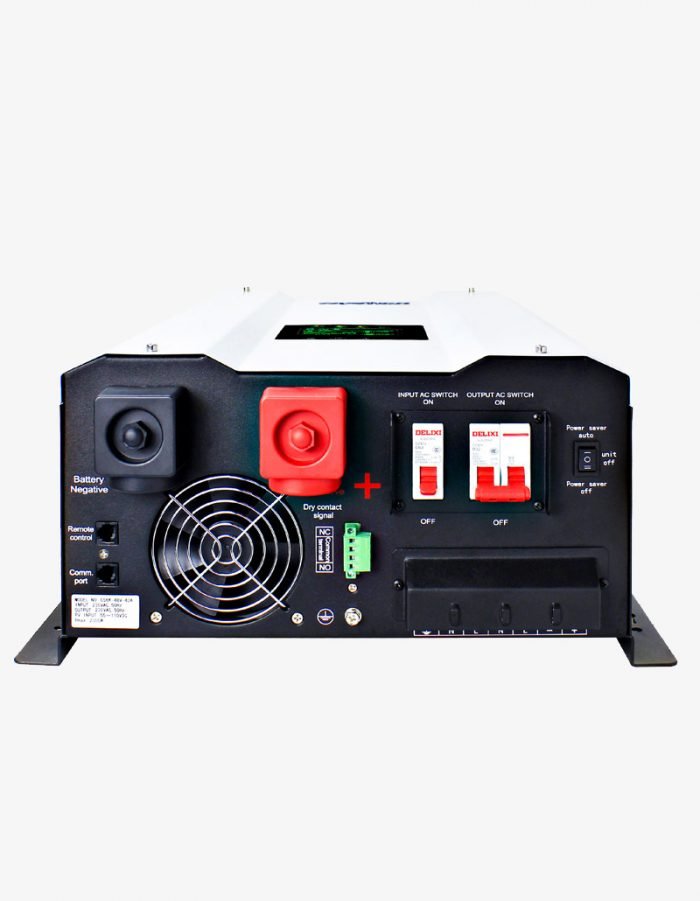

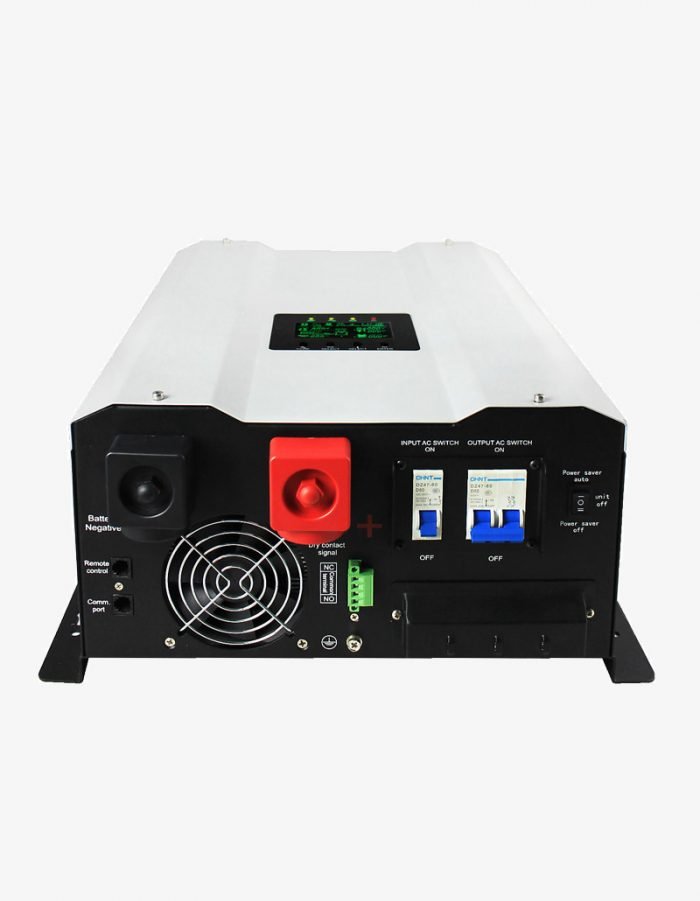

PV charger and AC charger hybrid Split phase 120v/240v solar inverter (Copy)

Basic featuresRated power 4kw to 12kw. with DSP controlPure sine wave, splite phase outputBuilt-in MPPT solar charge controllerLow frequency with transformerConfigurable AC/ Solar input priority via LCD settingCompatible to mains voltage or generator powerWIFI GPS remote monitoring optionalRS485 communication for BMS of Lithium batteriesLong life Low frequency split phase solar inverterThis Solar inverter with split phase 120v /240v output, which combined functions of inverter, PV charger and AC charger. The comprehensive LCD display controller gives configurable and easily accessible operation such as battery charging current, AC/Solar charger priority, and selectable input voltage based on different applications. Powerwall Battery for it DiscriptionsIntroducing the Solar Inverter with Split Phase 120V/240V Output - the ultimate solution for your power needs! This innovative product combines the functions of an inverter, a PV charger, and an AC charger, providing you with uninterrupted power supply all the time.With a comprehensive LCD display controller, you can easily configure the operation of the inverter to suit your needs. The controller provides easily accessible settings such as battery charging current, AC/Solar charger priority, and selectable input voltage based on different applications. This gives you full control over the inverter, ensuring that it operates optimally at all times.The Solar Inverter with Split Phase 120V/240V Output is designed to deliver reliable performance, even in the harshest conditions. With its rugged construction, this inverter can withstand extreme temperatures and weather conditions, making it the perfect choice for off-grid applications.The split-phase 120V/240V output of this inverter provides you with a versatile power supply that can be used for a wide range of applications. Whether you need to power your home appliances, office equipment, or industrial machinery, this inverter has got you covered.In addition, the Solar Inverter with Split Phase 120V/240V Output features a PV charger that allows you to harness the power of the sun to charge your batteries. This makes it an eco-friendly and cost-effective solution for your power needs. Detail Specifications:Model8kw split phase10kw split phase12kw split phasePower Rating8000W10000W12000WAC InputInput VoltageWaveformSinusoidal(utility or generator)Nominal inputVoltage230VACLow LineDisconnect184Vac±4%(Normal) or 135Vac±4%(Wide) for 230VacLow LineRe-connect194Vac±4%(Normal) or 145Vac±4%(Wide) for 230VacHigh LineDisconnect263Vac±4%(Normal) or 263Vac±4%(Wide) for 230VacMax ACinput Voltage230Vac for Max270VacFrequency50Hz:41-54Hz,60Hz:51-64HzAC ChargerNominalCharge Current20A/35A/50A/70A/90A(5 stages adjustable charging current)Over ChargeProtectionBat.VN62.0VDC for 48V battery ； beeps 0.5s every 1s & fault after 60sSolar ChargerRated ChargeCurrent60A60A60APV InputVoltage range55-145VDC for 48VMax.PV open circuitarray voltage48V for 145VDCCharger modeMPPTPV Low VoltageRe-connectPV>Bat.V=3VPV Low VoltageDisconnectPVWBat.VEfficiency>97%ChargerNominal ChargerCurrent20A/35A/50A/70A/90A(According to the inverter model), 5 stages adjustable charging currentOver chargeProtectionBat.V>15.5VDC/31VDC/62VDC,beeps 0.5s every 1s & fault after 60sEfficiencyEfficiency(Battery Mode )>87�ficiency(Line Mode)>98�ttery VoltageNominal DCInput Voltage48VDCLow DC inputshut-down40VDC±1.2VDC for48VDCHigh DC inputAlarm & Fault64VDC±1.2VDC for48VDCTransfer TimeAC to DC DC to AC20ms(max) 15ms(max) System ParameterOver-Load Protection110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, load>150%, beeps 0.5s every 1 s, and Fault after 20sOutput Short Circuit ProtectionCurrent limit(Fault after 10s)Surge Rating(10s)1:3(VA)Power SaverLoad<25W(Enabled on "P/S auto"Setting of Remote control)ProtectionsLow battery.over charging,over load,over tempIndicatorsLED LCD DisplayGeneral Specification Operating Temperature Range0°C to 40°CStorage Temperature-15°C 〜60°COperation humidity5% to 95%(non-condensing)Audible Noise60dB maxcoolingForced air,variable speed fanDimension(L*W*H)627*416*204mmNet Weight(kg)52.5kg58.5kg66.5kgSend InquiryThe Long life Low frequency split phase solar inverter is the perfect solution for those who are looking for a reliable and efficient way to power their home or business. This innovative product combines the latest technology with a low-frequency design to ensure long-lasting performance and minimal maintenance requirements.With its split-phase output, this solar inverter provides the versatility you need to power a wide range of appliances and devices. Whether you need to power your home's lighting, heating, and cooling systems or your business's machinery and equipment, this inverter has got you covered.The long life of this inverter is due to its low-frequency design, which reduces wear and tear on the components. This means that you can enjoy years of reliable performance without having to worry about costly repairs or replacements.In addition, this solar inverter features a comprehensive LCD display controller that makes it easy to configure and monitor the system. With configurable settings such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications, you can customize the inverter to suit your needs and ensure optimal performance at all times.Your NameYour EmailPhone NumberCompanyYour Message
