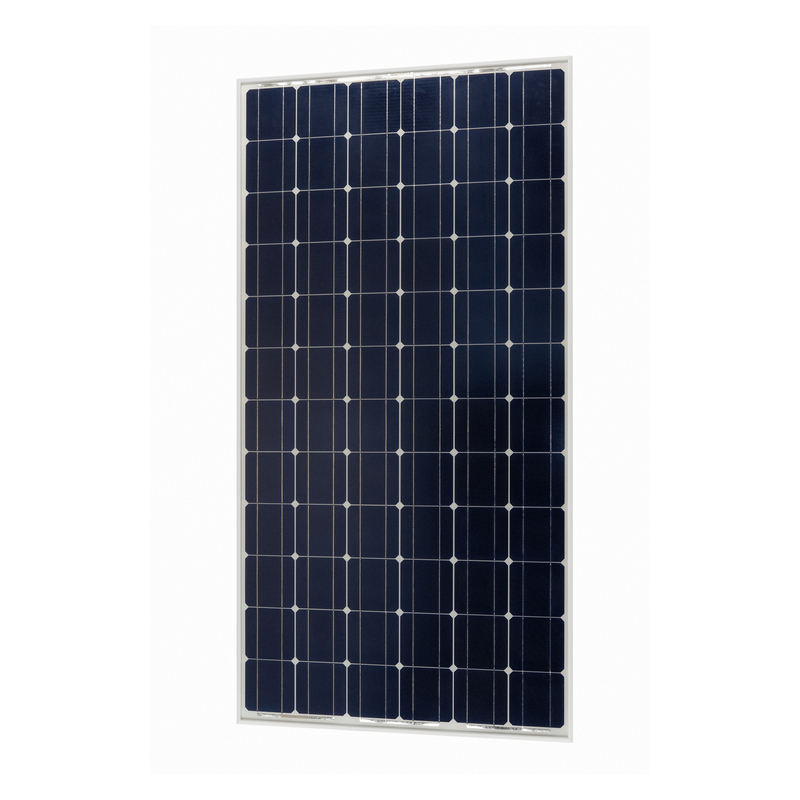

Solar Panel Victron Energy 175W-12V Mono 1485x668x30mm series 4a

Low voltage-temperature coefficient enhances high-temperature operation.Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.25-Year limited warranty on power output and performance.5-Year limited warranty on materials and workmanship.Sealed, waterproof, multi-functional junction box gives high level of safety.High performance bypass diodes minimize the power drop caused by shade.Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets themost stringent safety requirements for high-voltage operation.A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety ofstandard mounting systems.Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors. Specifications Model: SPM041751200 Module connector: MC4 Nominal power: 175 W Max-power voltage: 19.4 V Max-power current: 9.03 A Open-circuit voltage: 23.7 V Short-circuit current: 9.89 A Maximum system voltage: 1000 V Cell technology: Monocrystalline Number of cells: 36 Frame: Aluminium (silver) Cable length: 900 mm MC4 Dimensions (height x width x depth): 1485 x 668 x 30 mm Weight: 11 kg Documents for Download BlueSolar Monocrystalline Panels Technical Data BlueSolar Solar Panels Installation Manual Brochure Off-grid, backup & island systems Brochure Automotive Brochure Marine Brochure Self-consumption & Energy Storage
