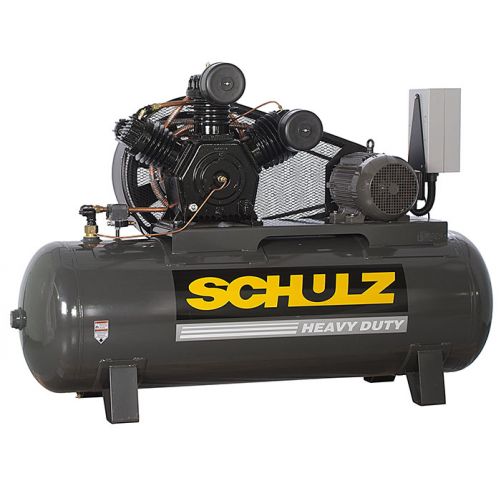

Product Description General Info Stock #: 932.9337-0 Brand: Schulz Model: 15120HW60X-3 Approx. Shipping Weight: 1100 lbs. / 499 Kg Approx. Shipping Dimensions: 78.3″ x 28″ x 51.2″ / 1.99m x 0.71m x 1.30m Specifications Motor Horsepower: 15 HP / 11.19 KW Voltage: 208-230/460 V / Three Phase Max Operating Pressure: 175 PSI / 12.07 bar Free Air Delivery @ 175 PSI: 60 CFM / 1699 L/min Theoretical Displacement: N/A Number of Stages: 2 Number of Pistons: 2 (V-Series) Tank Capacity: 120 Gallons / 454 L Tank Type: Horizontal Lubrication: Oil-Lubricated (Splash) Pump Material: Cast Iron Equipped With Standard Accessories: WEG TEFC electric motor, V-Series cast iron pump with space between cylinders for cooler operation, Deeper cylinder fins for enhanced heat dissipation, Oversized main bearings for durability, Swedish steel valves for efficiency, CNC machined components for precise fit and performance, Notched belts, Enclosed metal belt guard, Powder coated components to resist rust and corrosion, Magnetic starter mounted and wired, Auto start/stop pressure switch operation, Powder coated ASME certified receiver, Pressure gauge, Manual condensate drain, Oil sight glass
